Spare parts

Find the right part to maintain your Peerless product.

Compressor Model number or name

  • DSC 4106

    PB14000-1

    PB14000/17000 Pump with Flywheel
    PB14000Alloy

    PB14000-1

    PB1400/17000 Pump with Flywheel

    The PB14000/17000 air compressor pump comes pre-filled with oil, air filters and pulley.
    Every air compressor is tested ex-factory for quality assurance guaranteed.



    Technical Specifications

    Compatible Compressor Models PB14000, PB17000
    Compatible Electric Motors 2.2 - 3.5HP
    Compatible Petrol Motors 5.5 - 6.5 HP
    Compatible Diesel Motors 4.5 HP
    Recommended RPM 895 -1100
    Oil Capacity 1000ml
    Pump Head Tension 16 FT LB - 22.4NM

    Top End

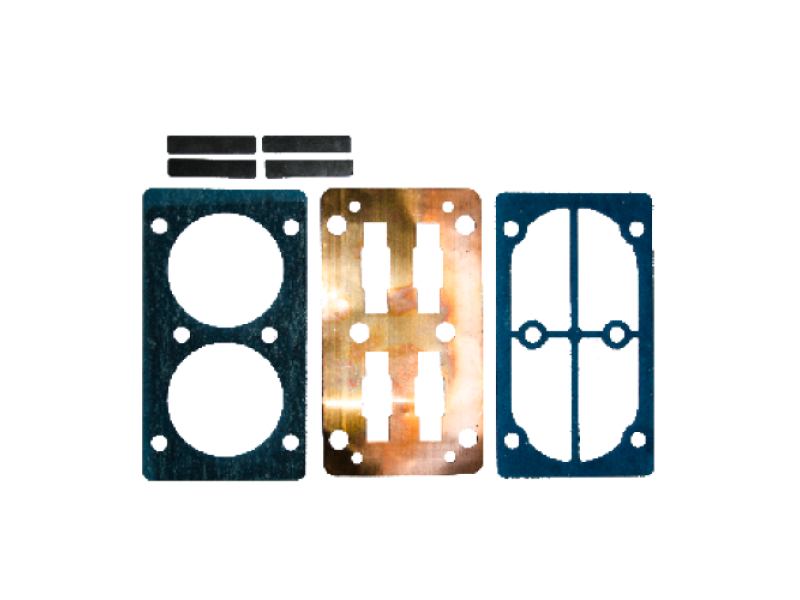

    PB14000 13

    PB14000-13

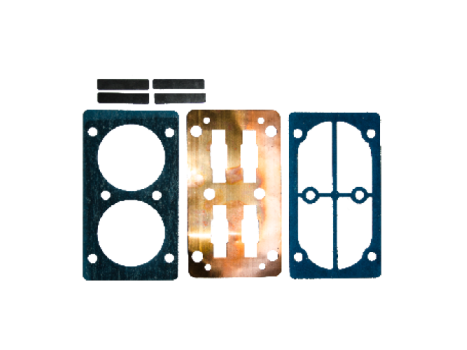

    Seal & Gasket Complete Kit - PB14000/17000

    3 x gaskets, 4 x reed valves (2 x inlet, 2 x exhaust)

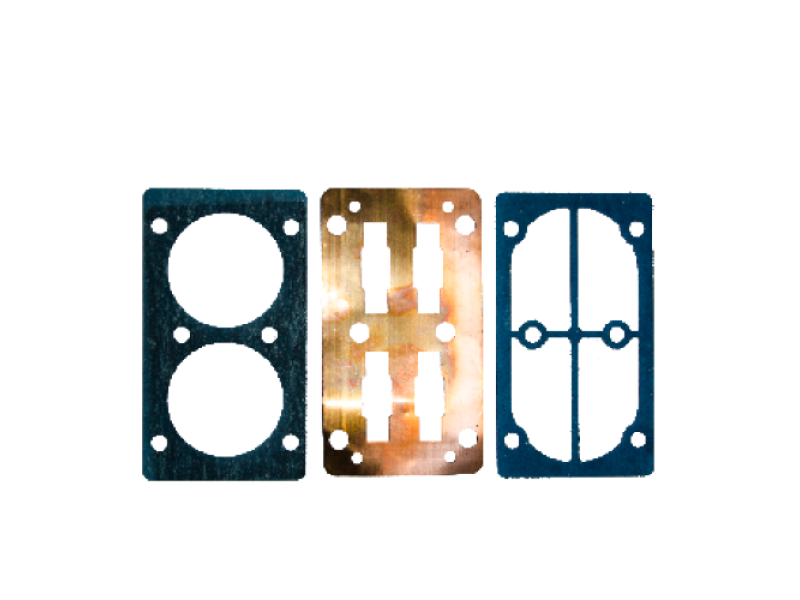

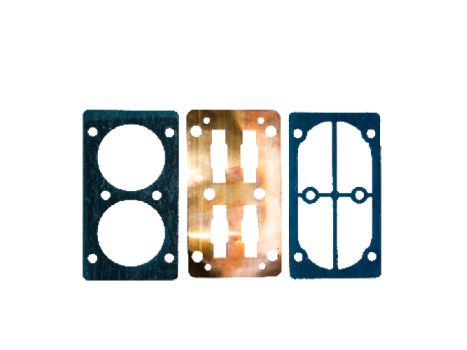

    PB14000 11

    PB14000-11

    Seal & Gasket Complete Kit (No valves) - PB14000/17000

    3 x gaskets only

    PB14000 6

    PB14000-6

    Exhaust manifold gasket - PB14000/17000

    1 x gasket

    Internal Components of PB14000/17000

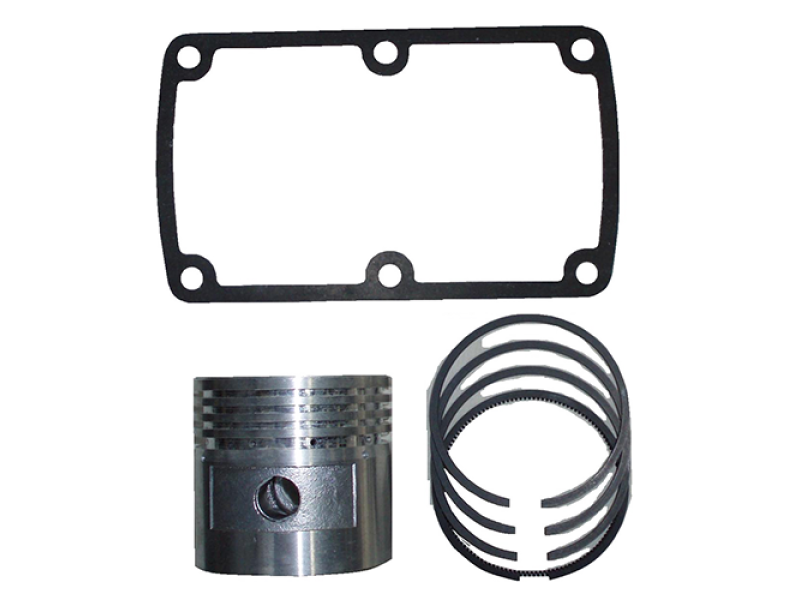

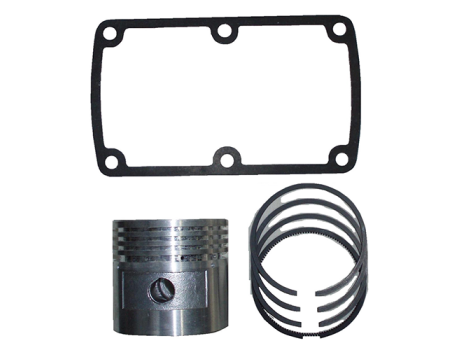

    PistonKit

    PB14000-18

    Piston Kit, Piston, Rings & Gasket - PB14000/17000

    1 x Piston, 1 x set of rings (3 Compression, 1 oil) 1 x barrel sump gasket - per cylinder

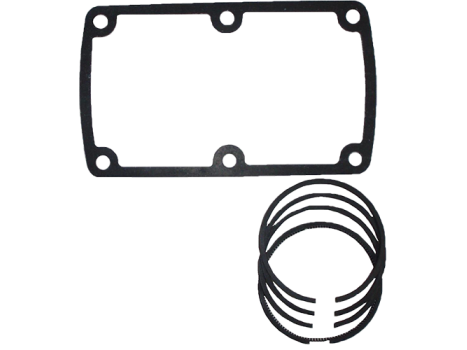

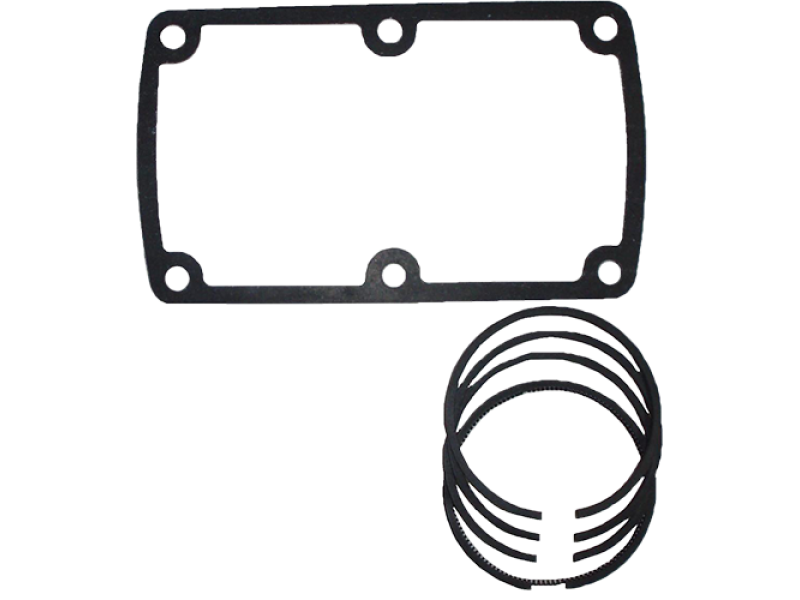

    RingKit

    PB14000-17

    Piston Rings & Gasket - PB14000/17000

    1 x set of rings (3 Compression, 1 oil) 1 x barrel sump gasket - per cylinder

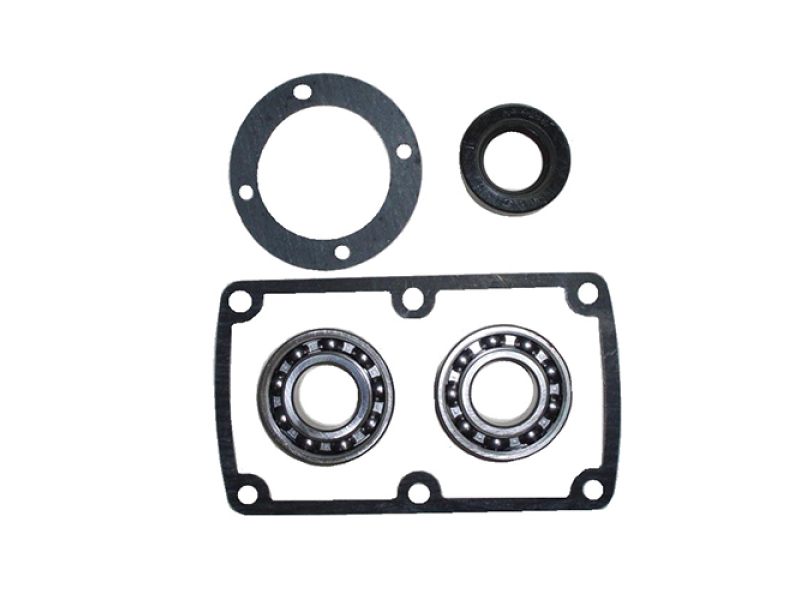

    Bottom End Kit

    PB14000-23

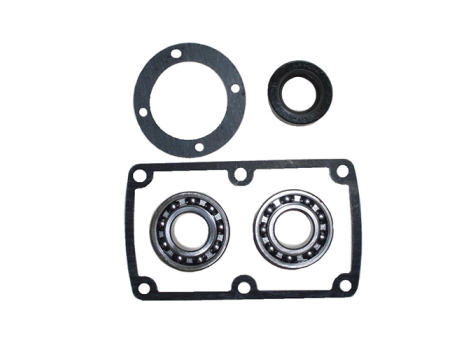

    Bottom End Kit, Gaskets & Bearings - PB14000/17000

    1 x barrel sump gasket, 1 x front bearing cover gasket, 1 x rear bearing cover gasket, 1 x front bearing, 1 x rear bearing, 1 x crank shaft seal

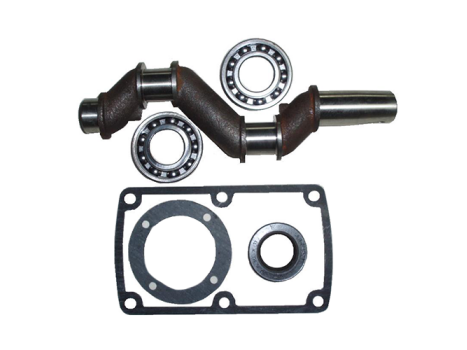

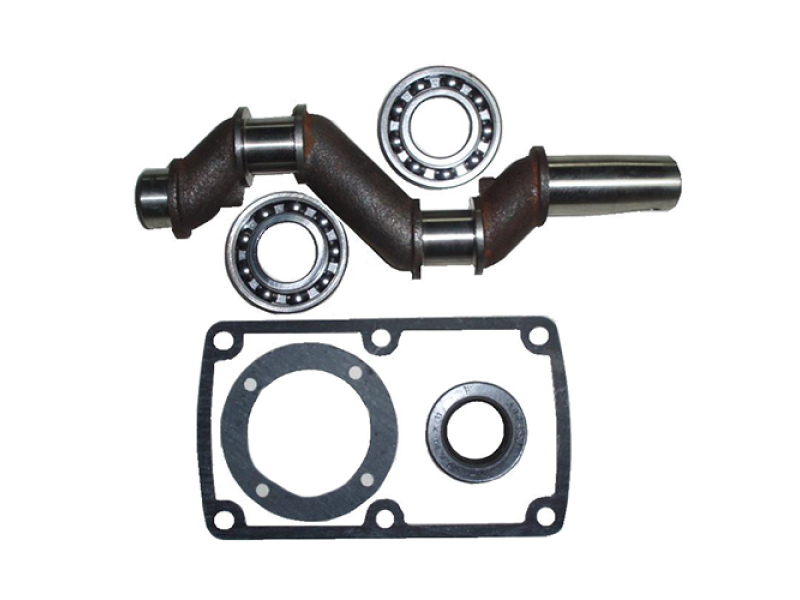

    CrankshaftKit

    PB14000-22

    Crank shaft Kit, Crankshaft, Bearing & Gasket - PB14000/17000

    2 x Crankshaft bearings, 1 x crankshaft seals, 2 x bearing cover gaskets, 1 x cylinder crankcase gasket, 1 x crankshaft

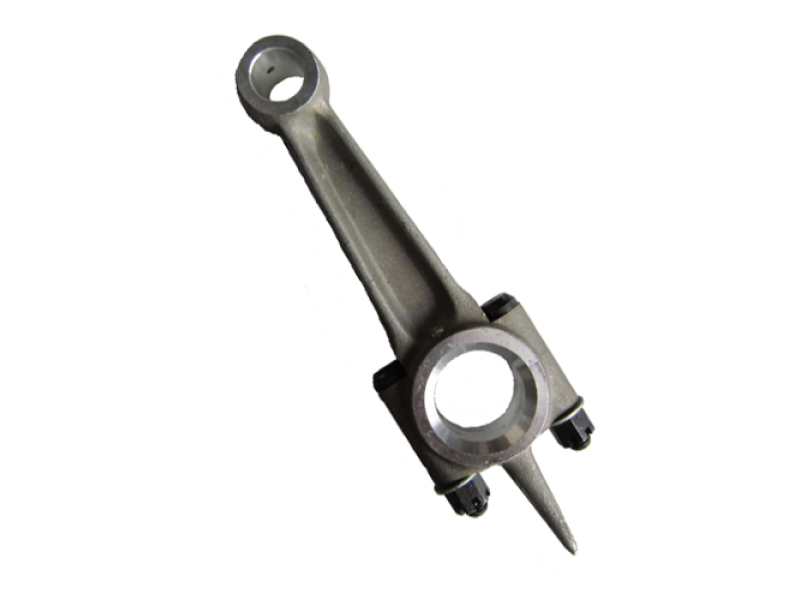

    Conrod3

    PB14000-20

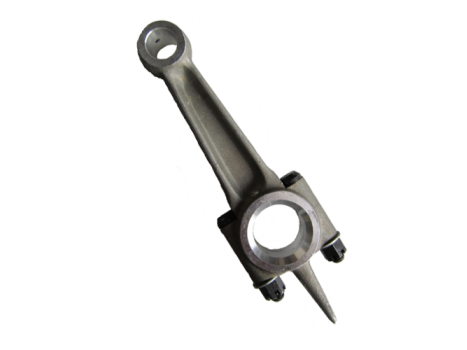

    Conrod - PB14000/17000

    External / Body Components of PB14000/17000

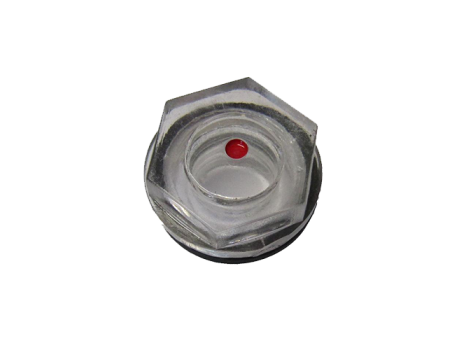

    PB2500 22

    PB14000-31

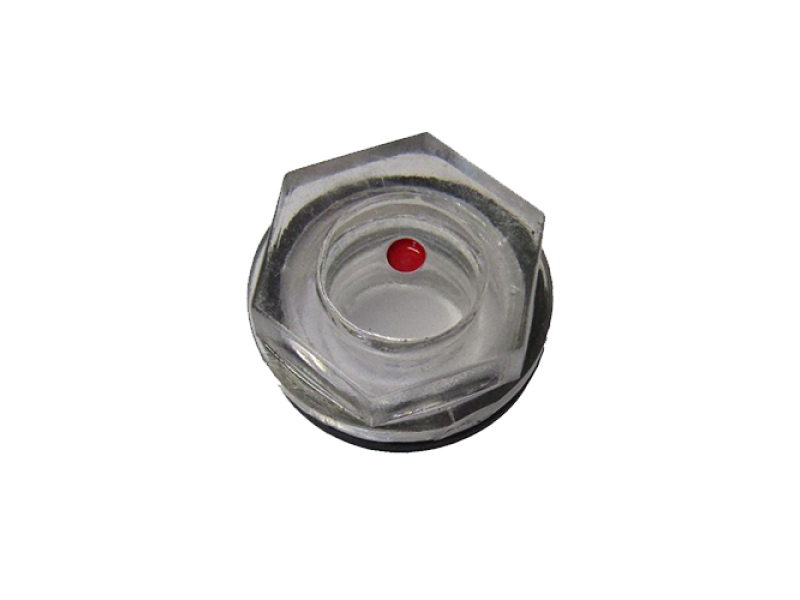

    Oil Sight Glass - PB14000/17000

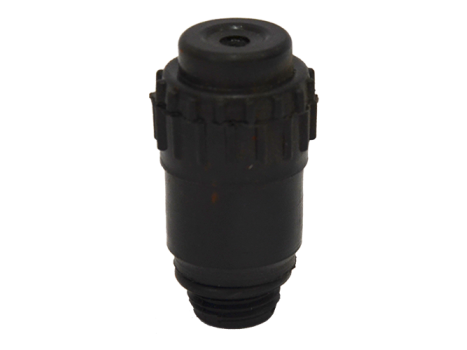

    PB14000 30

    PB14000-30

    Oil Breather - PB14000/17000

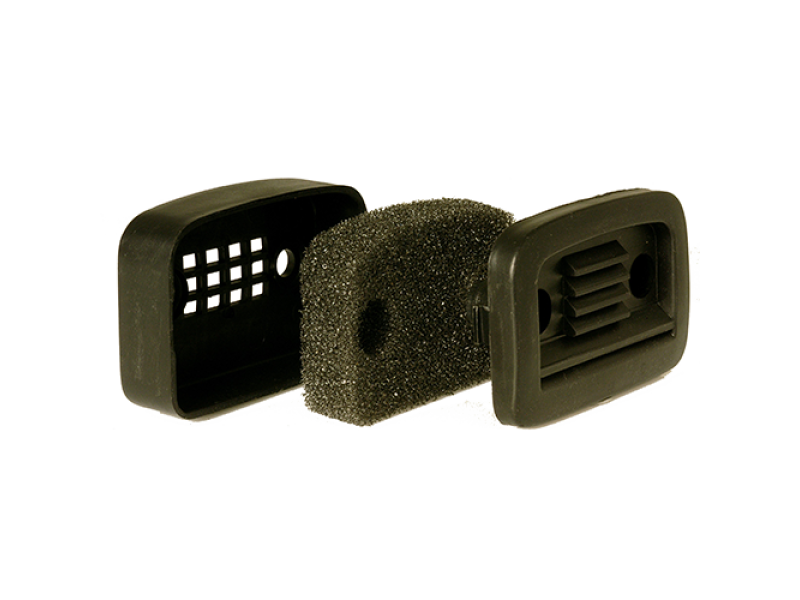

    Airfilter

    PB14000-5

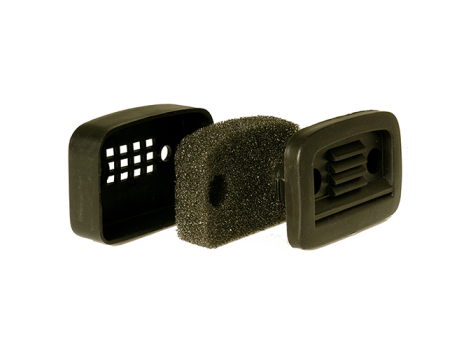

    Air Filter Assembly - PB14000/17000

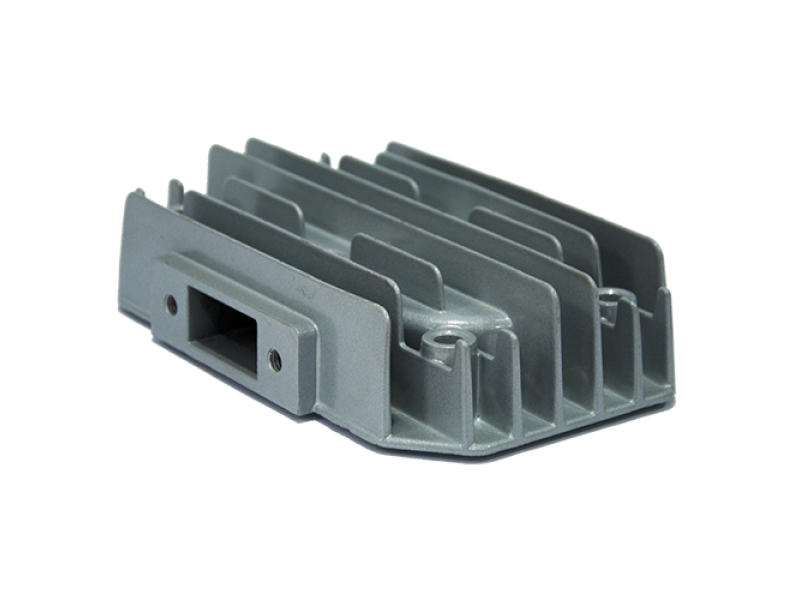

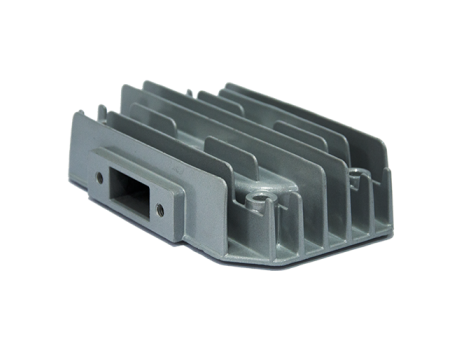

    PB14000 10

    PB14000-10

    Cylinder Head - PB14000/17000

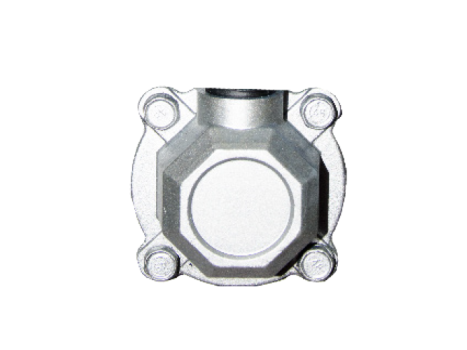

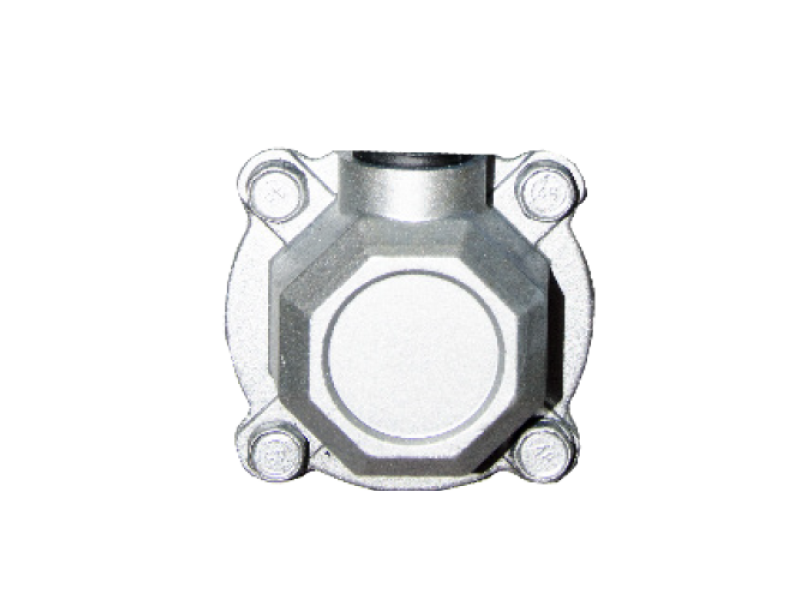

    PB14000 27

    PB14000-27

    Sump Cover - PB14000/17000

    PB14000 24

    PB14000-24

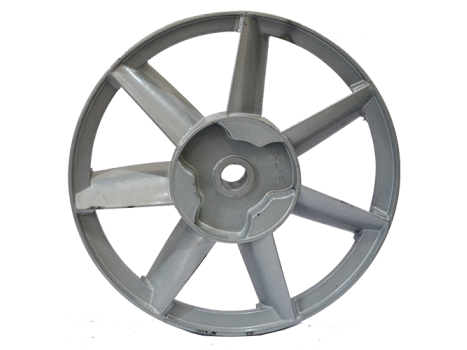

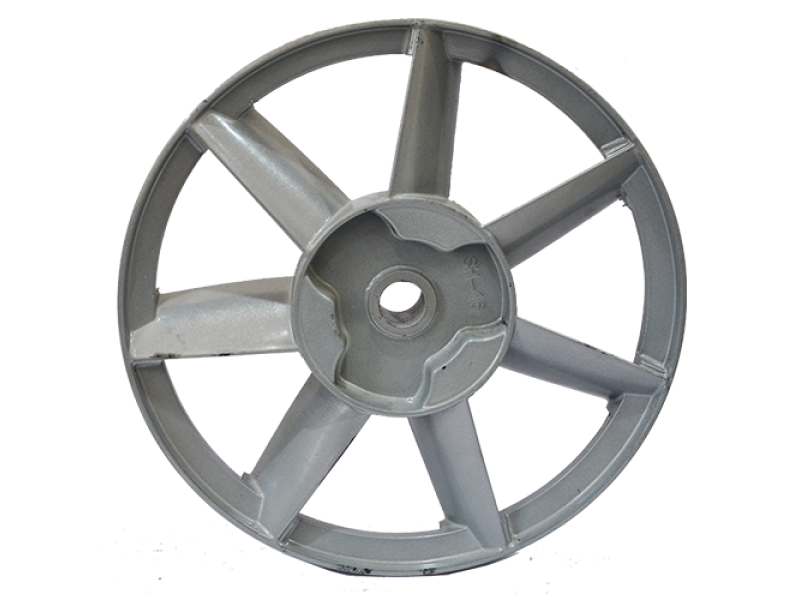

    Flywheel - PB14000/17000
