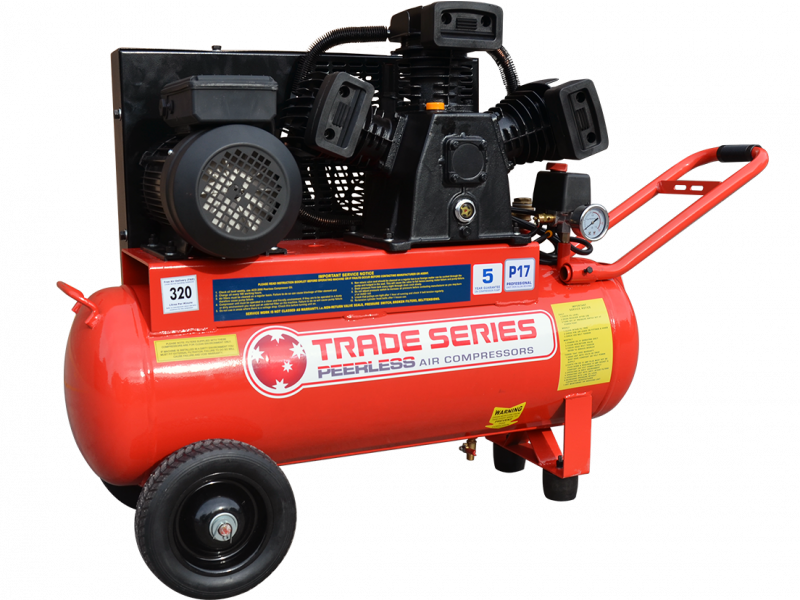

PU17W

Trade Series 17W Portable, 320LPM, 15AMP

5 Year Pump, 1 Year Motor

The PU17W single phase air compressor is one of the biggest machines on a 15AMP plug producing 320 litres per minute of free air delivery.
Cast iron crankcase, stainless steel valves and a slow revving pump also makes this one of the quietest on the market. Our competitors are too scared to mention their pump RPM!
With a Smart Start filter supplied, this will help reduce the AMP draw on start up by letting the motor get up to RPM before sucking air through the inlet and helps reduce the load on the motor.
Comes with 2 outlets, one out from the water trap regulator and one directly out from the tank for full tank pressure. Built to last with solid puncture proof wheels. Having one of the largest warranties on the market, 5 Year Pump and 1 Year Motor Warranty this puts your mind at rest when investing in a quality product.
Due to its popularity the PU17W also comes in a fatboy model and also a vertical design, both featuring 110l tanks. When portability isn’t required both these option are perfect with an increased compressed air storage.

Technical
Specifications

Air Delivery 320 LPM @ 100PSI
Cylinders 3
Max PSI 145
Motor Electric 3.5HP
Pump Peerless 3065W Single Stage
Pump RPM 1132
Power Supply 15 AMP
Amps Draw 13
Tank Size 55L
Dimensions L x W x H 1060MM x 430MM x 770MM
Weight 90KG
Portable / Stationary Portable
Regulator Included? ET250 Water Trap Regulator
Pump Up Time To 100 PSI 1.10 - 1.15MIN
Pump Warranty 5 Year
Motor Warranty 1 Year
