PU25
Trade Series 25, 545LPM, 5.5HP

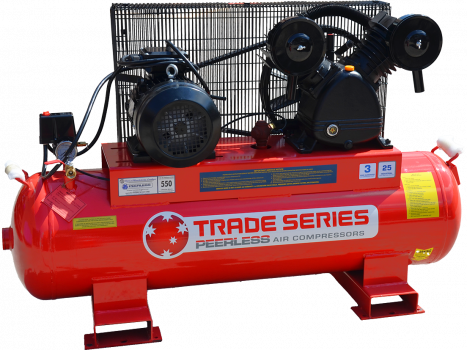

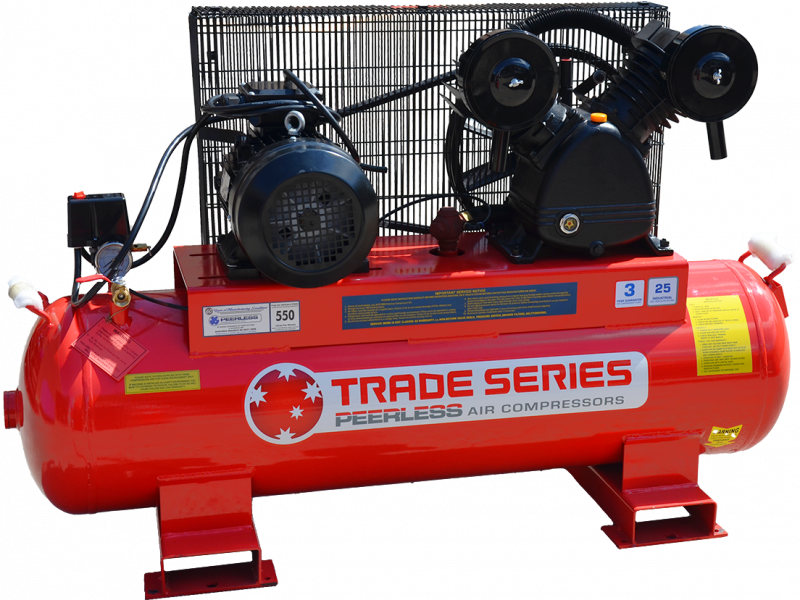

The Trade Series 25 is a V cast iron pump single stage air compressor. It gives a massive 545 litres of free air, with a maximum operating pressure of 145PSI. This model is one of the most popular 3 phase models on the market and is ideal for a 2-3 man workshop.
Technical
Specifications
| Air Delivery | 545 LPM @ 100PSI |
|---|---|
| Cylinders | 2 |
| Max PSI | 145 |
| Motor | Electric 5.5HP |
| Pump | Peerless V90 Single Stage |
| Pump RPM | 1050 |
| Power Supply | 415V |
| Amps Draw | 6.6 |
| Tank Size | 110L |
| Dimensions L x W x H | 1330MM x 440MM x 890MM |
| Weight | 158KG |
| Portable / Stationary | Stationary |
| Regulator Included? | No |
| Pump Up Time To 100 PSI | 1.00 - 1.05 MIN |
| Pump Warranty | 3 Year |
| Motor Warranty | 1 Year |
